Gear up and take the first step of pedalling.

Driving the spirit of the run from the feet through the whole journey.

Hubsmith products are made in Taiwan.

Hear the original bee humming!

*This item is limited to Brompton P-line (or T) models.

* Only use Hubsmith carbon fiber brake pads (included).

* Compatible with P/T derailleur system to 4/5 speed. Or with optional 3rd parties upgrade to 7 speed 11t-28t (e.g. MiniMODs Advanced Gearing System kit).

This version features ultra-lightweight carbon spokes & ceramic bearings.

---

DESCRIPTION

• The brake side features a milled groove drainage design to enhance braking performance.

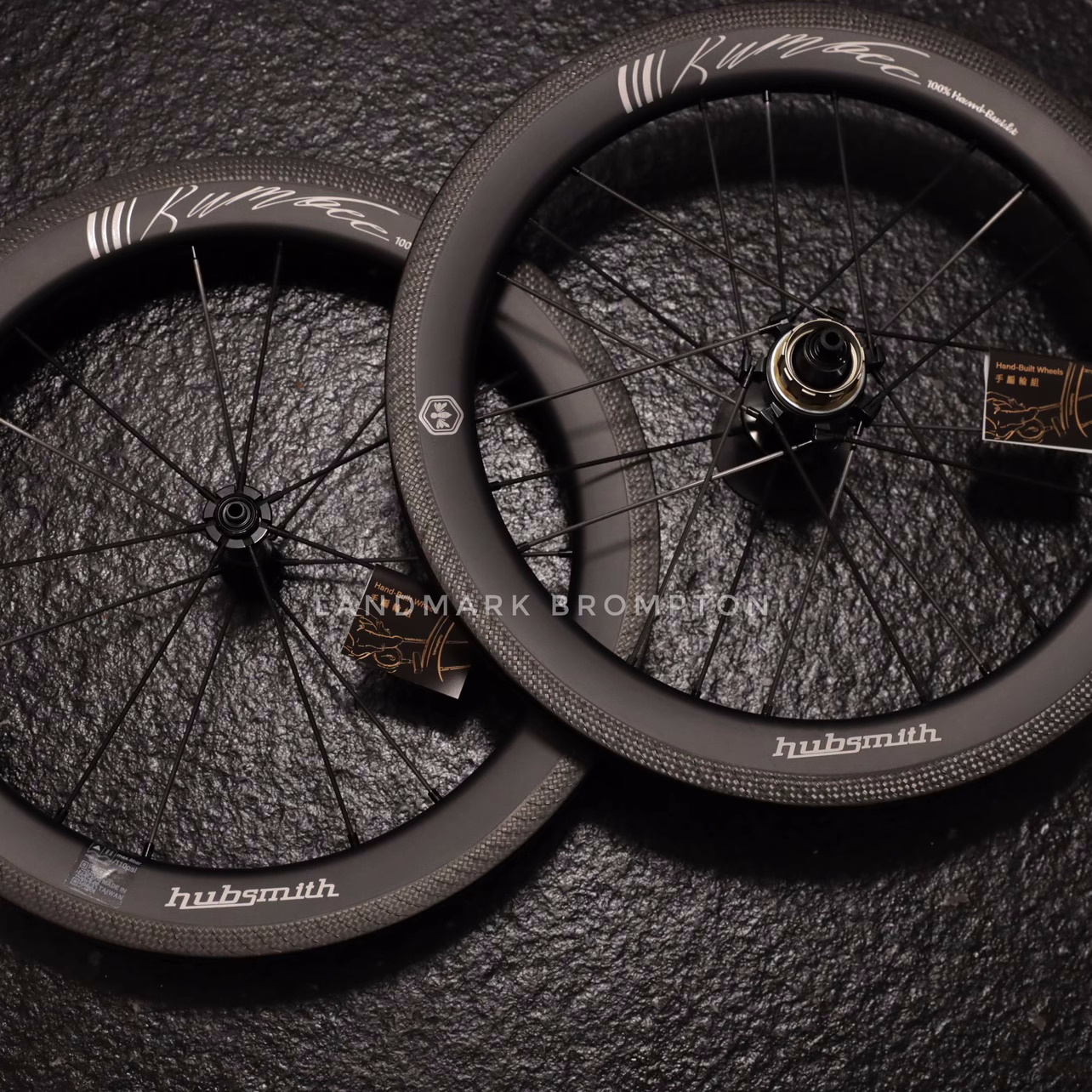

• Lightweight 349 carbon fiber wheelset
• Ultra-lightweight carbon fiber spokes that offer both reduced weight and increased rigidity when compared to traditional steel spokes.
• High-precision smooth and wear-resistant ceramic bearing.
• Exclusive drilling angles for hubs and spoke holes. (reduce the corner angle )
• The freehub body has 3 teeth * 3 paws, total 9 contacting points, running inside 48 teeth engagement, and is equipped with wear-resistant steel sheets to prevent snake bites.
• All hand built by wheel-building technicians.
• Hubsmith high Tensile and high-pressure rim tape.

---

SPECIFICATION

Wheel Size

16"

Material

3K carbon fiber brake/ UD carbon rim

Rim Type

Clincher

Brake Interface

Rim Brake(with brake pads)

Rim Depth

38mm

Inner Width

18mm

Outer Width

25mm

Fork Width

OD.ø8*74mm

Frame Width

M5*112mm

Spoke Count

14H/21H(CARBON SPOKES)

Max Tire Pressure

110psi

Freehub Body Compatible

Shimano 4SP (It can be installed to 5 speeds, suitable for Shimano freewheels.)

Quick Release

HS-QR25

Weight

(F) 366±20g / (R) 517±20g (excluding skewers and rim tape)

---
